CORE TECHNOLOGY

The Advanced Driving Technology of Full-digital Torque Servo Motors

All digital, closed-loop control.

10000 draw-wire encoder, accurate positioning.

Low-speed large torque, continuously viable and energy-efficient.

Core components for 10 long service lives, maintenance-free and quiet.

The Innovative Passing Logic Control Hardware and Software Technology

The leading passing logic algorithm technology of dynamic model recognition.

Reliable access security, conPgurable functions, with accurate prevention of fraudulent entry and anti-cracking encryption.

The passing logic control board, with high I/O integration, strong reliability, interface compatibility, anti-cracking encryption, etc.

The logic algorithm, sensor layout and the passing logic control board can be adapted to customer requirements, if desired.

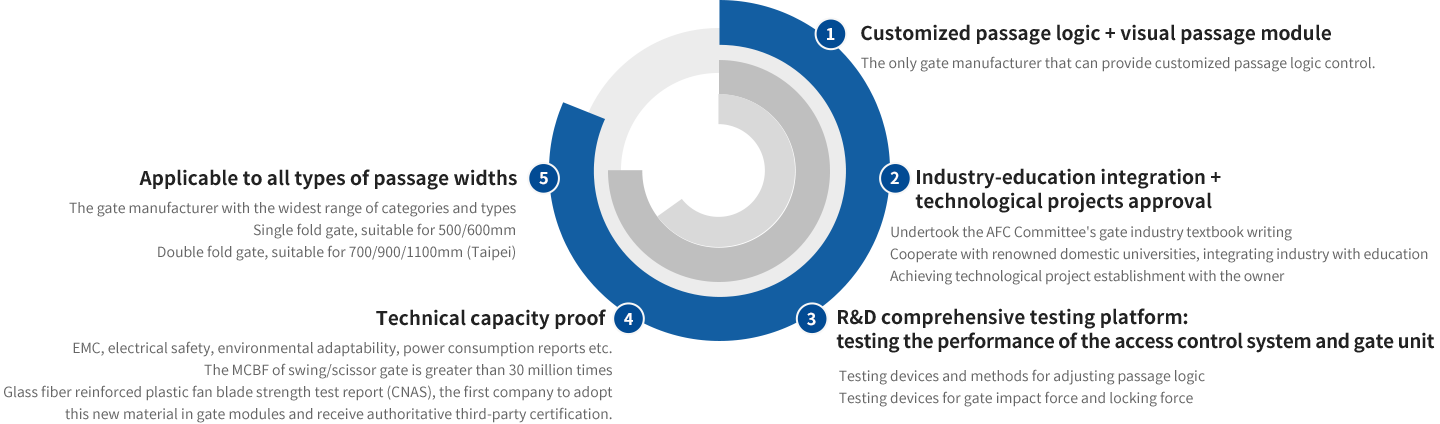

Technological innovation point
Core component

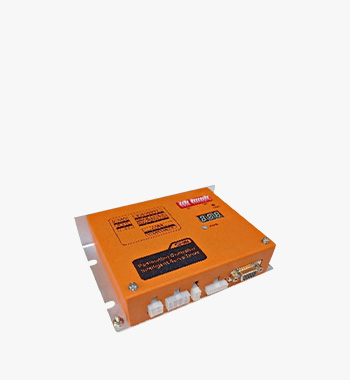

  • Passing Logic Control Board (PLC) or Gate Control Unit (GCU)
    Passing Logic Control Board (PLC) or Gate Control Unit (GCU)

    · Independent design of the passing logic control board and access algorithm software, with the international advanced level, the anti- anti- tailgating distance can reach less than 20CM.

    · The passing algorithm and sensor layout can be adapted to customer requirements, if desired.

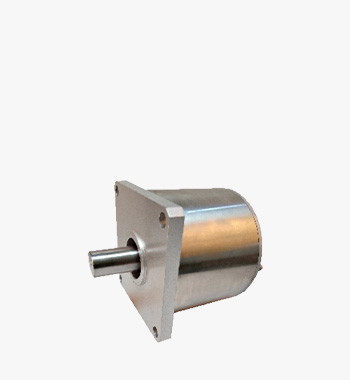

  • Torque DC Brushless Servo Motor
    Torque DC Brushless Servo Motor

    · Low speed high torque, quiet, low power consumption, fast heat dissipation, low interference, strong overload ability.

    · Electronic commutator instead of mechanical commutator, with no wear, no need for regular maintenance, long life and so on.

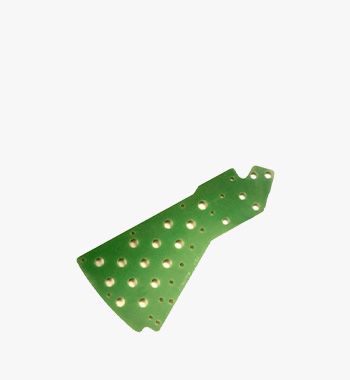

  • FR-4 barrier skeleton (Glass fiber board)
    FR-4 barrier skeleton (Glass fiber board)

    · It has good durability, high strength and toughness. Tested by a third-party agency, it can statically bear up to 250kg force, far exceeding the industry standard of "at least 100kg force without yielding to permanent stress deformation."

    · The fan blades are lighter and gate movement is smoother with faster switching speed for the lightweight and lower density compared to metal. At the same speed, the impact force can be controlled smaller, ensuring safer use.

    · The good maintenance design allows fan blades have less possibility of stress deformation under larger impact force virtually eliminating gate problems caused by permanent deformation of the blades during operation.

  • Intelligent driver
    Intelligent driver

    · Precise control of the contact force between the barrier and the passenger.

    · In the closing state, the retention force can be adjusted if the barriers are subjected to external force collision, violent forced to open.

    · Protection of overvoltage, overcurrent and over-temperature.

    · Motor fault monitoring, fault escalation.

  • Supports big data integration

    It’s capable of recording and replicating passage information; can learn to adapt to different regional body characteristics and passage behavior rules. It has IoT capabilities, can achieve unlimited operation and remote monitoring via Bluetooth, 4G, LoRa protocols, and can remotely collect the passage information and support big data collection.

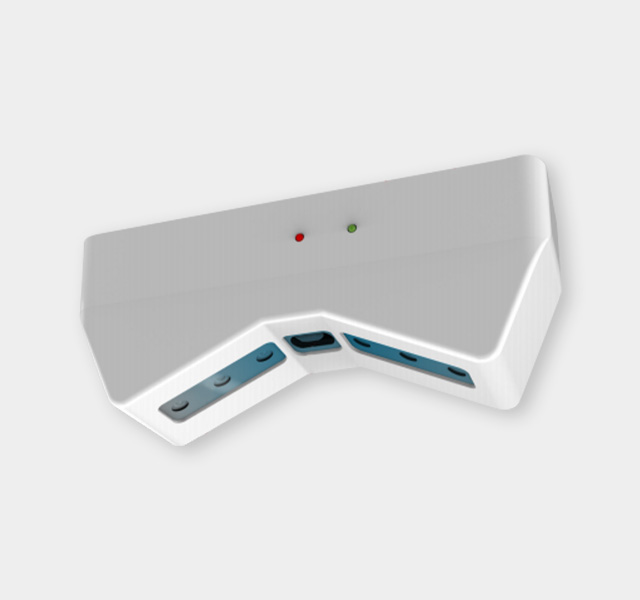

  • 3D camera

    Wide field of view, larger recognition range; high resolution, high precision, capable of extracting contour data and object dimensions. It can reduce the length and footprint of the turnstile, making the appearance more modern and beautiful.

  • Multi-target complex motion pattern tracking

    Kalman filtering-based tracking algorithm can track targets across multiple frames and ensure target ID consistency. By real-time monitoring of dynamic changes during tracking, it estimates and corrects the filtering model parameters and noise statistical characteristics, optimizing tracking results. It can determine the movement trend of objects, including passengers' card swiping, QR scanning, and ticketing actions, preventing false authorization removal, and stoping tailgating, parallel, and hugging passage and other illegal evasion of fare behaviors, so as to greatly improve the anti-fraud capability and passenger flow under high-density conditions.

  • Deep image recognition algorithm

    It completes recognition, localization, and measurement based on 3D information deep learning network, and is capable of self-calibration of camera position, channel width, and gate position. It can iteratively train the deep learning network, constantly optimizing recognition accuracy, improving passage efficiency, greatly enhancing passage safety. It can effectively distinguish adults and children, large volume suitcases, wheelchairs, belongings and actual passers-by in real time.
